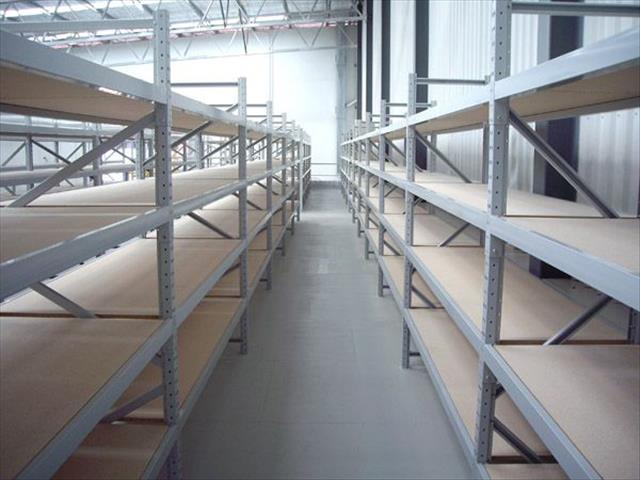

LONG SPAN / MEDIUM DUTY

WAREHOUSE RACKING SYSTEM

1 BAYS –  4 SHELVES PER BAY

IDEAL FOR WAREHOUSES - GARAGES - WORKSHOP - RETAIL



Easy to install (DIY), installation service available.

Easy to adjust, height adjustable beams to suit requirements.

Economical – low capital cost, increase warehouse/workshop storage capacity & efficiency.

Provides fast and direct access to every level in the rack over 4 levels.

SPECIFICATIONS:
- ISO 9001 Certified product (SGS)
- Dimensions: Constructed 1 bays – 2400mm (L) x 2000mm (H) x 600mm (D)
- Construction: Heavy duty steel, plastic powdered coated
- 4 Level design

FRAME:
- Constructed dimensions: 2000mm (H) x 55mm (W) x 600mm (D)
- 1 Frame comprises of: 2x Upright posts, 2x Base plates, support bars, bolts, nuts
- Grey plastic powdered coating

BEAMS:
- Dimensions: 2400mm (L) x 55mm (h) x 40mm (D)
- Clear entry (usable length): 2400mm
- Capacity: certified up to 300 kg per level
- Grey plastic powdered coating

PARTICLE BOARDS:
- Dimensions: 2400mm (L) x 18mm (h) x 545mm (D)
- Clear entry (usable length): 2400mm
- Capacity: certified up to 300 kg per level


 PACKAGE COMPONENTS INCLUDED IN SALE:
- 2x Frames (frame components listed above)
- 8x Beams
- 16x Safety pins for beam
- 4x Particle Board

KEY FEATURES:
- Low capital costs and requires little installation time.
- Adjustment to the beam height is simple, allows for your ever-changing environment.
- Keyhole connection between beam and upright beams of the frame. As soon as a beam is attached to a frame, the lock snaps into place and holds firm to guard against accidental dislodgement. The load bearing keyhole connection provides greater rigidity and strength, and allows for easy adjustment.

INSTALLATION SERVICE:

Metro VIC only - $25 inc GST/bay, minimum 10 bays

(LS2000X2400X600_1bays)

SKU LS2000X2400X600_1bays
Brand mrpalletracking
Shipping Weight 150.0000kg
